A5 Series Module

A5 Series Module

PCI Membranes compact A5 tubular ultrafiltration module can be used for a wide range of industrial applications in the process industry for the economic concentration and clarification of process liquids and wastewaters.

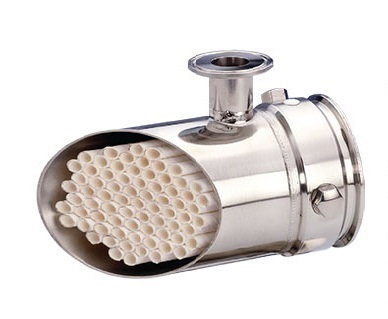

The A5 series module consists of a replaceable core of 69 tubes each of 6mm diameter fitted into a stainless steel housing.

The module uses our specially developed PVDF Ultrafiltration membranes that are suited to a variety of different process conditions. Three different separations are available: 20k Daltons, 100k Daltons and 200k Daltons nominal cut-off, although actual performance depends also on the operating conditions.

The compact design gives the module a high strength, allowing operating pressures of 10 bar at temperatures up to 60°C.

The module is available as standard in either 1.83m, 3.05m or 3.66m lengths, providing membrane areas of 2.34m2, 3.97m2 or 4.76m2 respectively.

Replaceable membrane core

Allows fast, cost-effective remembraning, reducing downtime.

Proven membranes

With applications in food, beverage, chemical and pharmaceutical industries.

Compact module design

Quick and easy plant construction.

Tubular module

Minimal prefiltration required, suited to liquids and high levels of suspended solids.
